How to unbrick Samsung Galaxy Note 5 by Installing Stock ROM

by Ajinkya
Aug 8, 2018
How to unbrick Samsung Galaxy Note 5 by Installing Stock ROM

Unbrick Samsung Galaxy Note 5

Share on FacebookShare on Twitter

If you have a rooted Galaxy Note 5 you might have tried flashing a custom ROM,custom recovery images, installing custom kernels,removing bloatware, overclocking or undervolting CPU frequencies and so on on your Galaxy Note 5. You should be prepared for all the possible scenarios; of which, bricking your smartphone at least once, is not a big thing to worry about. Usually, the most common Android software problems are issued while you are tweaking your Note 5. In this post, I’ll guide you How to unbrick Samsung Galaxy note 5.

We’ll be using a flashing tool named as Odin, Odin is an official tool, developed by Samsung and especially used on update procedures. So, you have nothing to worry about as everything will be carried out using Official tools. Make sure you are using this method only if your are unable to access Custom Recovery. Odin can be also used for performing a downgrade operation, if you have a previous version of the Android system downloaded on your computer. This manual update procedure is great as by performing it you can troubleshoot various software related issues (like boot loops, lags, bugs force close errors, battery drain, heating issues, screen freeze, total blackouts and more) and you can revoked root access on your Galaxy Note 5 as your phone will be restored back to its initial state.

Requirements:

  1. A Windows based PC.
  2. Original Samsung Galaxy Note 5 USB Cable.
  3. Disable Antivirus Protection in your PC as it might interrupt the flashing process.
  4. If you are following this method to manually update your Galaxy Note 5, then you can backup your Personal data like Contacts & all the files in your Internal memory. Backup IMEI.
  5. If you can’t switch on your Galaxy Note 5, charge it for around 2 hrs. Make sure the battery is above 50%

How to unbrick Samsung Galaxy Note 5

Download Odin, Stock Firmware & setup

  1. Download Odin and extract it using any free extracting tool like 7zip. Install the Software by following on screen prompts.
  2. Download Samsung KIES to install the USB drivers of Samsung Galaxy note 5. Skip this if you have already installed USB drivers.
  3. Download Samsung Galaxy Note 5 Stock Firmware from from below links
    1. T-Mobile Galaxy Note 5 Stock Firmware SM-N920T : Download.
    2. Sprint Galaxy Note 5 Stock Firmware SM-N920P : Download.
    3. Verizon Galaxy Note 5 Stock Firmware SM-N920V : Download
    4. Korean Galaxy Note 5 Stock Firmwares:
      1. KT Olleh Galaxy Note 5 Stock Firmware SM-N920K : Download
      2. SK Telecom Galaxy Note 5 Stock Firmware SM-N920S : Download
      3. LG U+ Galaxy Note 5 Stock Firmware SM-N920L : Download
  4. If you didn’t found your device name in above list, Goto Sammobiles.com & enter your device name.
  5. Place the firmware file on desktop and unzip the file. Run Odin in your computer.

Boot into Download mode in Samsung Galaxy Note 5

  1. Then, press and hold the power, volume down and home buttons for a few moments.
  2. Keep pressing these keys until the download mode is being displayed.

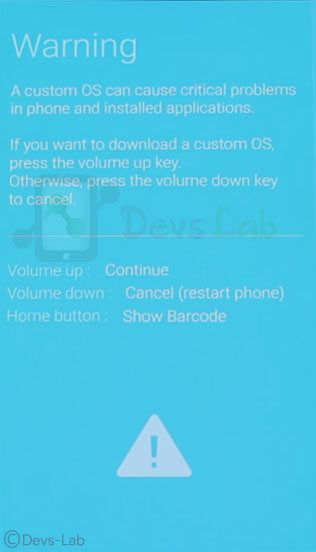

Download Mode
Download Mode

You can now connect your smartphone with your computer and use Odin for resuming the update operation you have to complete.

Unbricking Process using Odin

Step 1. Now, on Odin the “added” message will be displayed and the ID:COM field will be turned yellow or blue.

Step 2. Next, you have to click on “PA” and select the file with.tar/.tar.md5 extension from the extracted Stock firmware. Don’t check Re Partition and Auto Reboot options and when done click on “start”.

Samsung Galaxy Note 5 Flash Stock Firmware using Odin
Samsung Galaxy Note 5 Flash Stock Firmware using Odin

Step 3. Wait while your Galaxy Note 5 is automatically updated.

Step 4. When done (on Odin the “pass” message will be displayed and the ID:COM filed will be turned green) you have to unplug the USB cord and reboot your smartphone.

Samsung Galaxy Note 5 unbricking successful
Samsung Galaxy Note 5 unbricking successful

Final words

This helped us to fix our bricked Samsung Galaxy Note 5. Do stay close for further we will update this tutorial as soon as new methods are being shared with us. Also, use the comments field from below and let us know how things worked for you and if you managed to unbrick your Note 5 after all.
